4U 6U 19inch Industrial Server Cases with LCD and keyboard communication equipment case

Module

C650-AIndustrial Case

Product Feature:

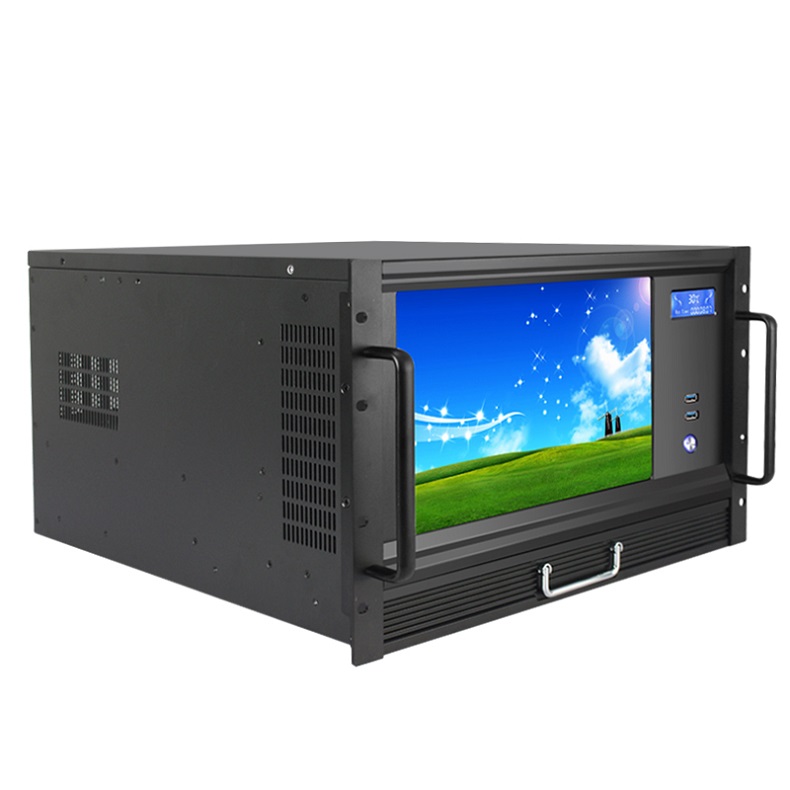

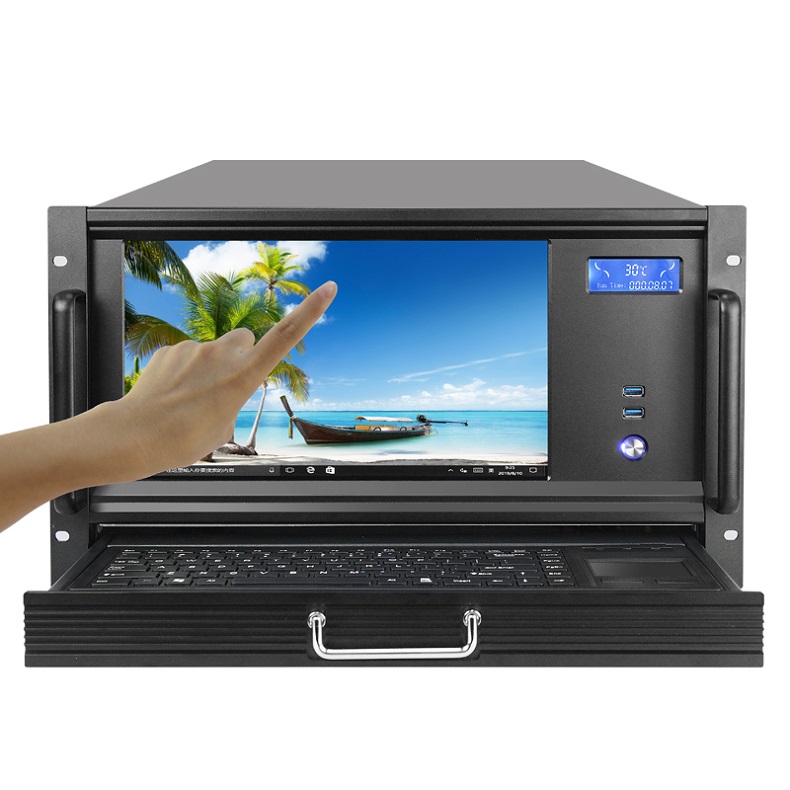

C650A  was one kind of standard 19" processing industry Case with the height of 6U by applying high-quality Ma Steel flowers-free zinc plating. Featuring novel structural design, it is solid, compact and reasonable in design and easy for installation and operation. Meanwhile, it contains the 13.3 inch touch screen  with 1920*1080 distinguishability and LCD for temperature control.It can support  6*3.5 HDD ,Meanwhile, the company’s products are widely applied in different sectors including industrial automation, communication, electricity, network safety, intelligent transportation, video surveillance, medical care, military industry/aerospace industry, self-service terminal, date storage, digital signage, car-mounted computer and 3C application AI etc.

Technical Parameters:

Dimensions

482(W)*500(D)*267 mm(H)

Main Board

EATX 12*13(305*345) CEB:12*10.5"(305*266.7mm)M-ATX:9.6*9.6"(245*245mm)  ITX :7*7"(170*170mm)

Hard Disk

2*3.5" HDD tray +2*2.5" HDD bracket

CD-ROM

no

Power

 2*ATX Power Supply  support

Fan

2*12025 fan

Expansion Slot

9*PCI-E slot and 6*com connector 1*HDMI connector 1*VGA connector

Panel Setting

2*USB3.0; One Power Switch with indicator; 13.3" touch screen and LED for temperature control 1920*1080 resolution

Case Material

SGCC and Aluminum panel

Material Thickness

1.2MM

G.W/N.W

22KGS/17 KGS

Carton Size

Container quantity

Delivery time

1 Week for sample ,2 Weeks for mass goods
